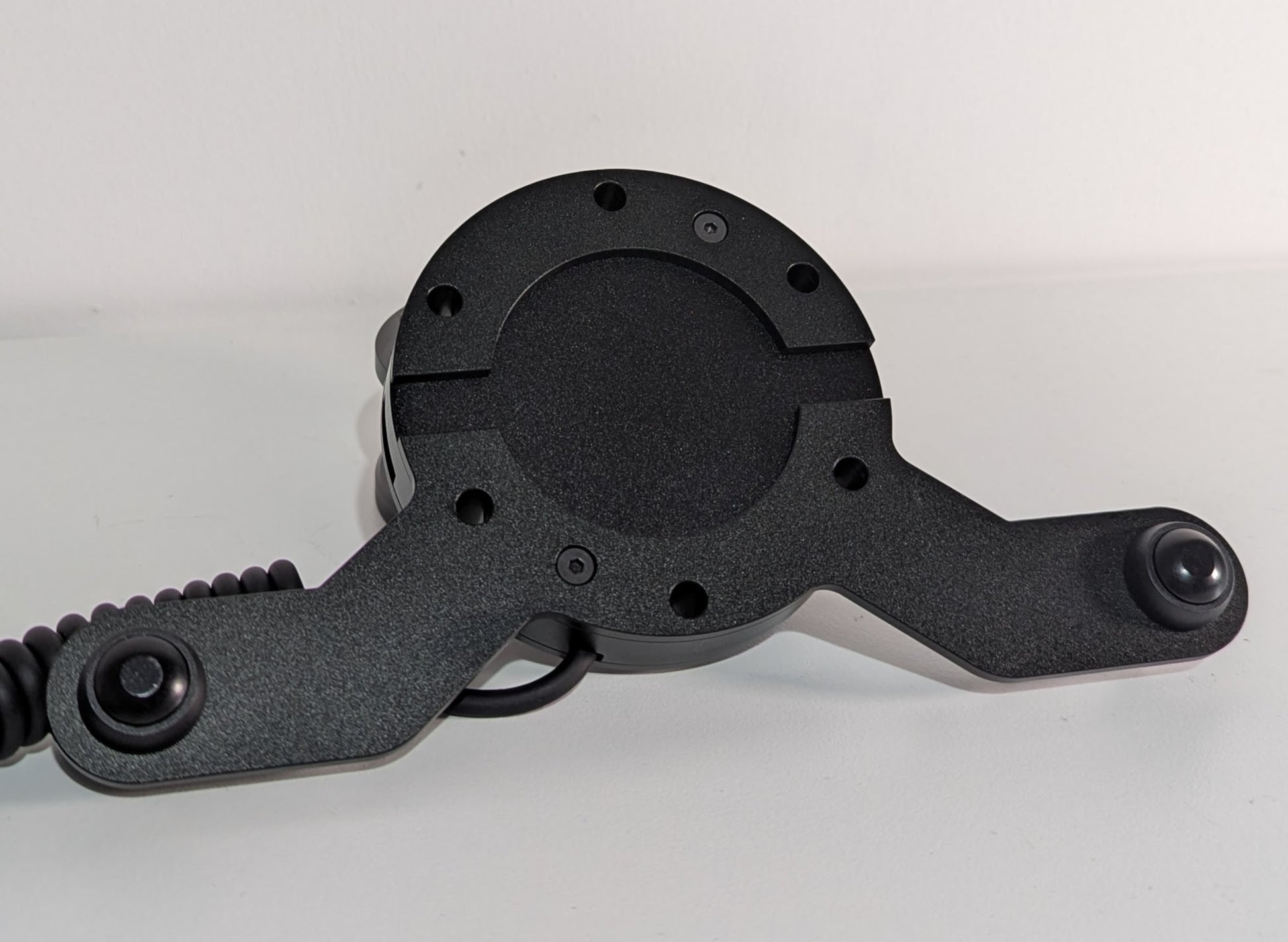

• Front view of the JC wheel hub without the JC front plate The wheel hub has a bottom 2 button bracket with black buttons mounted. The hub has a black coiled cable.

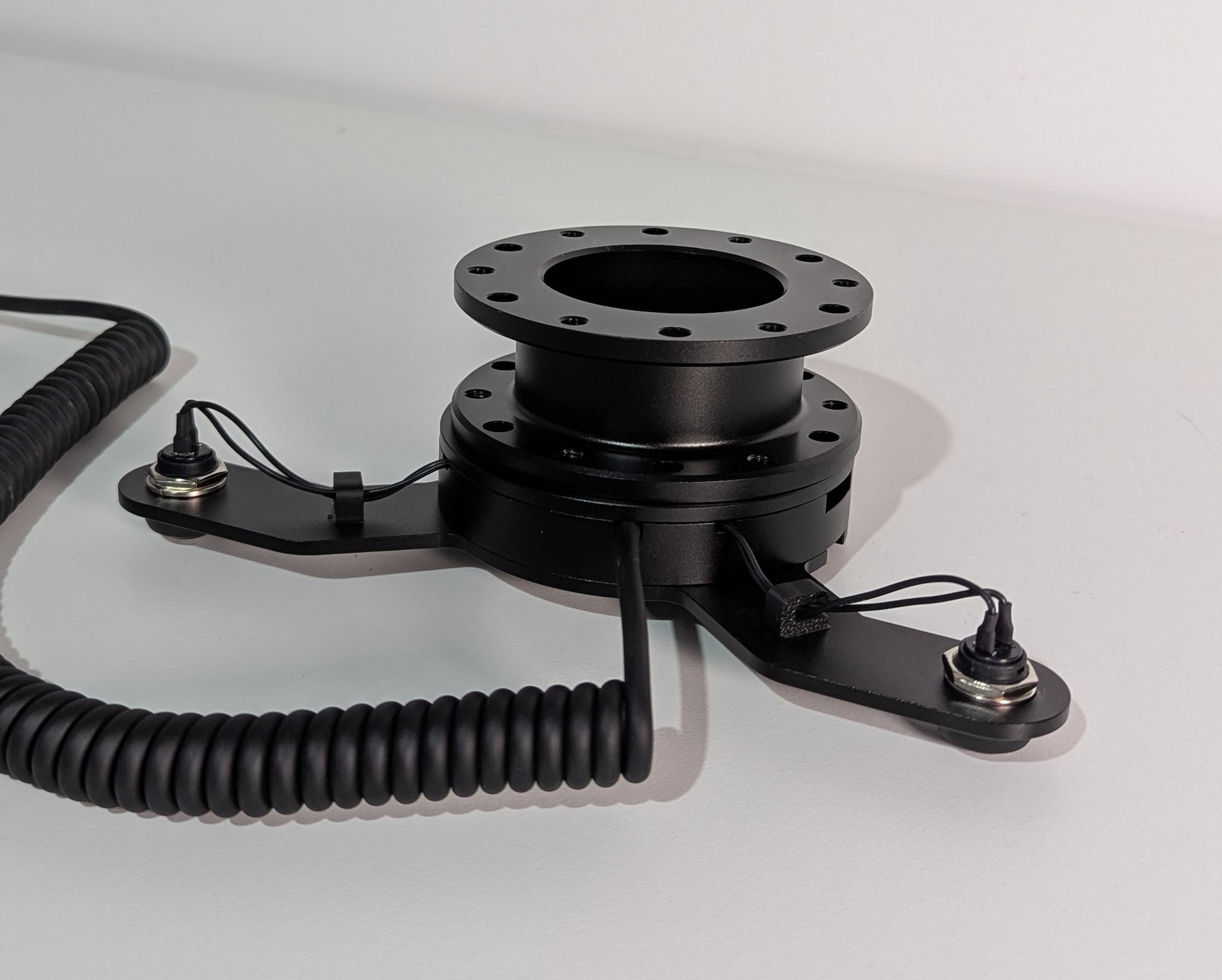

  • Rear view of the JC wheel hub without the JC front plate The wheel hub has a bottom 2 button bracket with black buttons mounted. The hub has a black coiled cable.

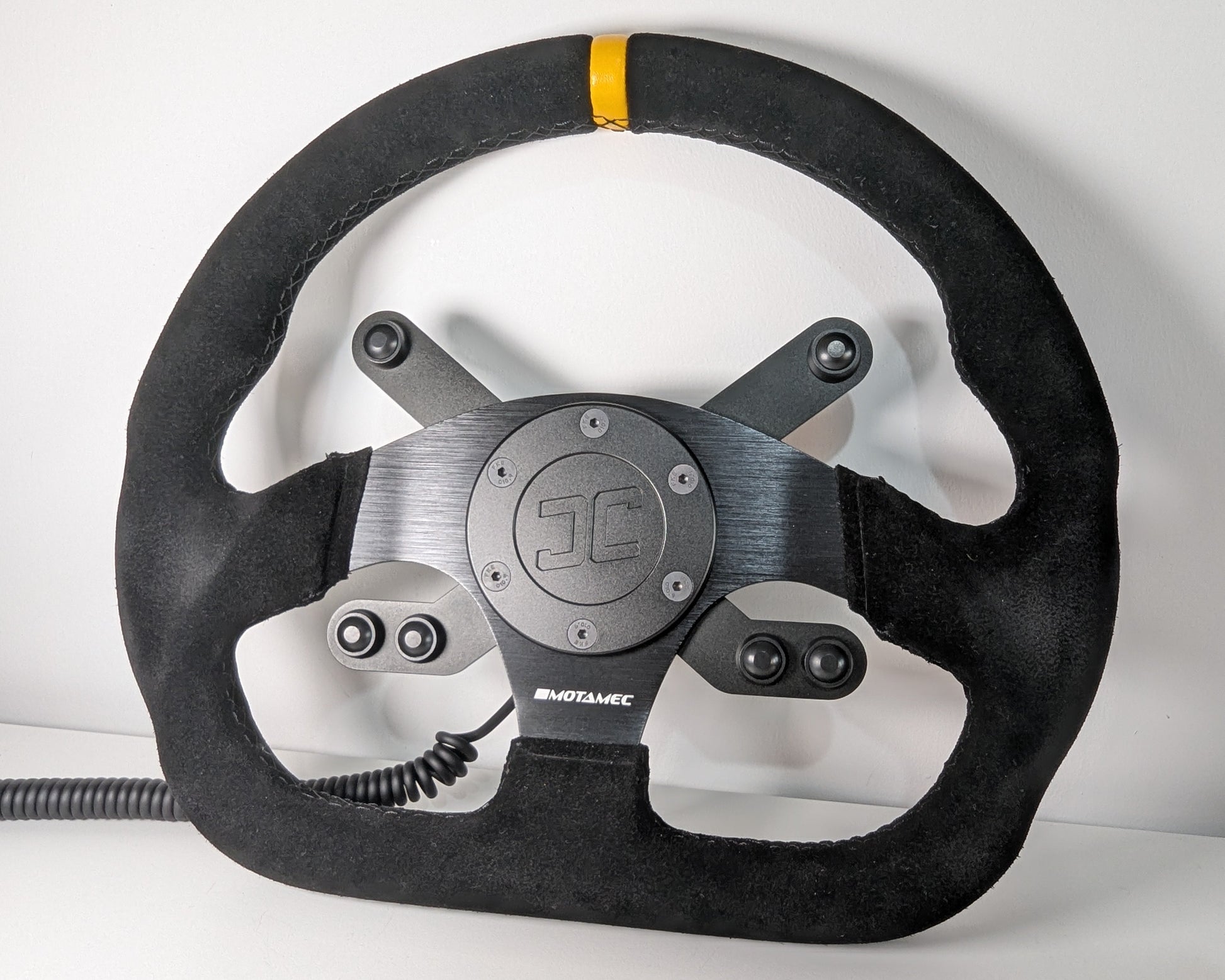

  • Black steering wheel with 'JC' branding on a white background The wheel has a JC wheel hub with a top 2 button bracket and a bottom 4 button bracket with black buttons mounted. The hub has a black coiled cable.

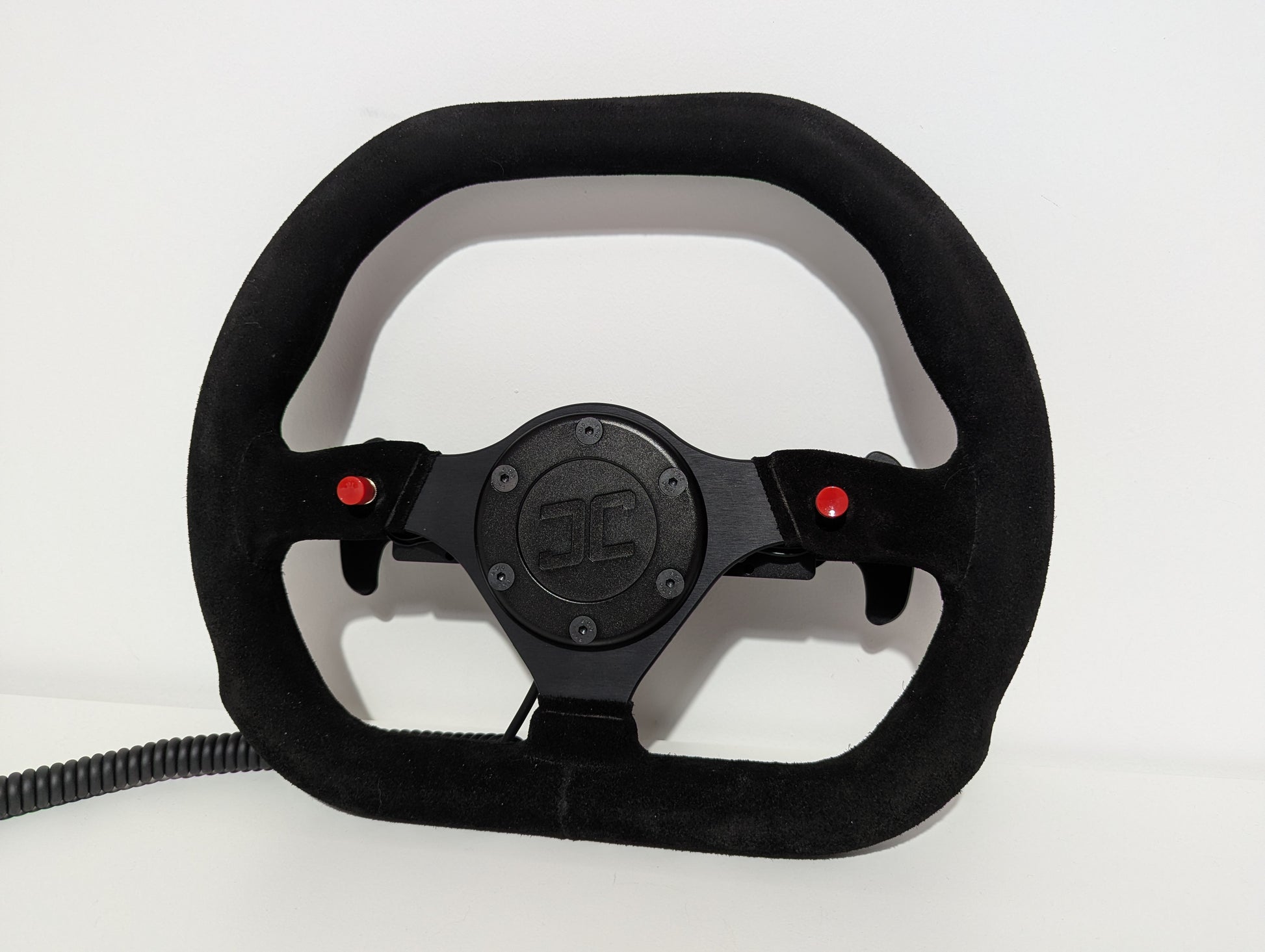

  • Black Sparco steering wheel with 'JC' branding on a white background The wheel has a JC wheel hub with 2 red buttons and a set of shifters mounted on a shifter bracket. The hub has a black coiled cable.

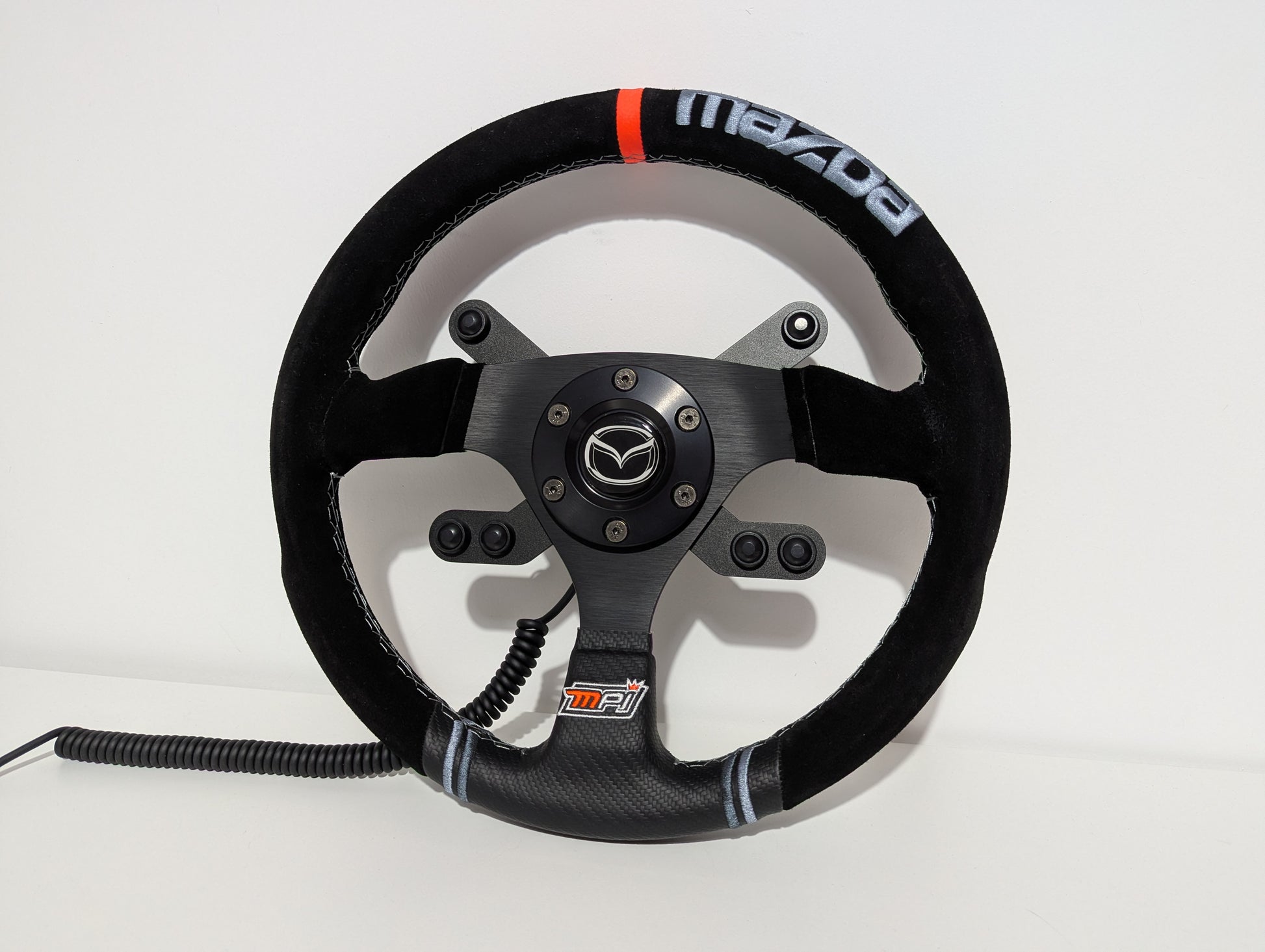

  • Black MPI Mazda steering wheel with 'JC' branding on a white background The wheel has a JC wheel hub with a top 2 button bracket and a bottom 4 button bracket with black buttons mounted. The hub has a black coiled cable.

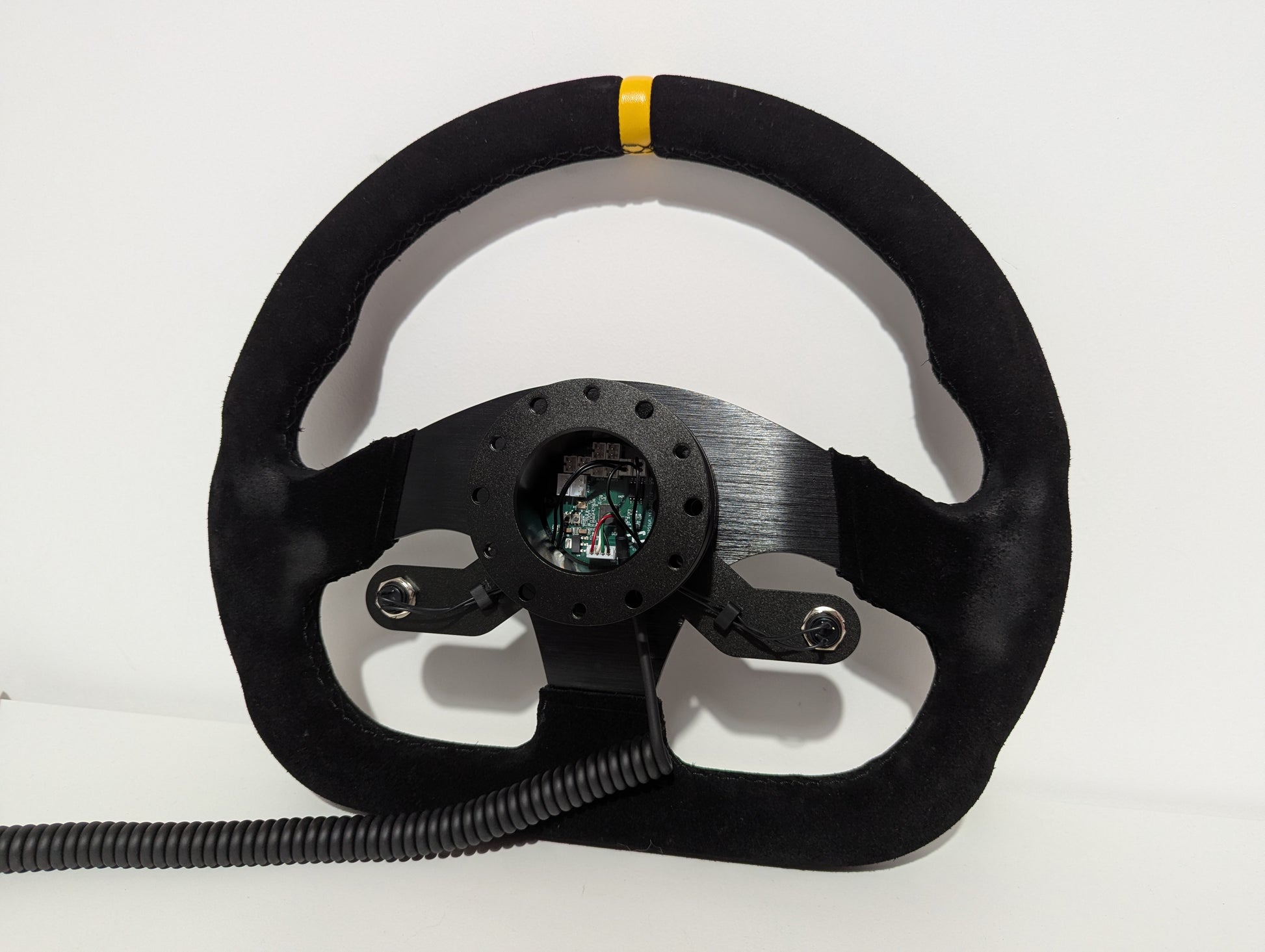

  • Black steering wheel on a white background The wheel has a JC wheel hub with a bottom 2 button bracket with black buttons mounted. The hub has a black coiled cable. The main PCB is visible in the back of the hub.
1 6

JC Sim Supplies

JC Wheel Hub Starter Kit

JC Wheel Hub Starter Kit

ÂŁ89.99 GBP
ÂŁ89.99 GBP
Sale Sold out

The JC Wheel Hub: Pure Function. Zero Frills.

The JC Wheel hub strips away all the unnecessary noise, delivering a dedicated, high-function core designed to transform any 70mm steering wheel rim into a professional-grade sim racing wheel.

Unlock True Racing Control

The JC Wheel Hub is engineered for the racer who values simplicity and core performance above all else. This is how you build a wheel that feels authentic, durable, and reliable, lap after punishing lap.

  • Instantly Adapt Any Rim: Transform any 70mm aftermarket wheel rim into a functional sim wheel with inbuilt buttons and shifters and a robust USB connection. Create the most realistic wheel for your sim setup, replicating real racing wheels.
  • Essential Inputs: Equip your setup with up to 8 critical button inputs and two ultra-responsive shifters. Everything you need, nothing you don't.
  • The DIY Advantage, Simplified: Get the function and flexibility of a custom DIY solution without the hassle. There is zero soldering and zero complex wiring-just immediate, plug-and-play performance.
  • Battle-Ready Build: Crafted entirely from all-aluminium components and finished in a sleek, jet-black anodised coating. It's built to look professional and withstand years of intense action.
  • Customisable Fit: Utilise multiple button bracket options to ensure a perfect, tailored fit for your specific wheel setup.

Stop waiting and start driving! If you crave the unfiltered, heart-pounding realism of a true race car, the JC Wheel Hub delivers a clean, distraction-free design that puts you right in the cockpit.

Wheel rims included in images for illustration purposes only

1:1 printable PDF templates of each of the button brackets are located in the Product Resource area to allow you to design and preview your button bracket configuration. This will allow you to check the clearance of your wheel layout with the button brackets.

Functionality

This device is for PC only and allows the addition of buttons and gear shifters to any 70mm bolt pattern wheel, without the need for soldering! Up to 8 buttons plus 2 shifters (if using the JCSS Gear Shifters or Ascher Gen 6 shifters).

The hub is machined from solid aluminium, with a 70mm bolt pattern and holds a PCB designed to allow for multiple inputs of buttons and/or shifters mounted to a variety of different brackets (additional brackets sold separately). The modular nature of this product allows you to setup a wheel with the inputs you want.

Hub is shipped as separate components and will require assembly before use. Button brackets, buttons and USB cable all require fitting by customer.

Can be used with USB passthrough wheelbases and QRs with the included coiled USB cable, or via a direct connection to the main PCB using the standard USB pinout (Left to Right: 5+, D-, D+, G). See manual for details

Assembly service is available at an additional cost for customers who want the hub fully assembling ready to bolt to a wheel rim. See 'Pairs Well With' product links above for full details.

1:1 printable PDF templates of each of the button brackets are located in the Product Resource area to allow you to design and preview your button bracket configuration. This will allow you to check the clearance of your wheel layout with the button brackets.

Technical Details

  • Material: Black Anodised Aluminium 6061
  • Size: 81mm x 12mm (42mm including spacer)
  • Weight: Wheel Hub = 364g, 0 Button Bracket = 15g, 2 Button Bracket = 40g, Buttons & Fixings = 12g
  • Cable: 2.4m Coiled USB

What's in the Box

  • JC Wheel Hub
  • 2 Button Bracket with buttons
  • Coiled USB Cable
  • Mounting Hardware

Support and Downloads

Please visit our dedicated Product Resources area in our Support Hub to view product manuals, guides and downloads:

https://jcsimsupplies.co.uk/pages/product-resources
